Replacement TENS Pads: Compatibility Guide

Short answer: Choose replacement TENS pads by matching the connector first, then the pad size, shape and intended body area. KONGZEE replacement pads use a standard 2mm pin connection, but not every TENS or EMS unit uses that connector. Snap electrodes, proprietary plugs and other pin sizes will not fit. Replace a pad when it is torn, permanently dry, contaminated, lifting from clean skin or causing uneven or uncomfortable stimulation.

Replacement TENS Pad Compatibility Checklist

Check	What to Confirm	Why It Matters
Connector	2mm pin, snap or a proprietary connection	A pad cannot connect safely if the lead and electrode use different fittings.
Lead wires	The pad-side connector and device-side plug both match	A 2mm pad does not guarantee that the wire also fits the controller.
Pad size	The pad fits the approved placement area	A pad should make full contact without crossing a prohibited area.
Gel condition	Clean, flexible and evenly adhesive	Dry or lifting gel can create uneven or sharp stimulation.
Instructions	The device and electrode directions permit the combination	Brand names and similar-looking plugs do not prove compatibility.

2mm Pin Pads vs Snap Electrodes

A standard 2mm pin pad has a small socket or pigtail connector that accepts the metal pin at the end of a compatible lead wire. A snap electrode uses a button-style connector. The two systems are not interchangeable without a connector specifically approved by the device manufacturer.

Before ordering, switch the unit off and compare the complete connection with your current setup. Check the pad-side fitting, the lead wire and the plug that enters the controller. If the connector type is unclear, use the device manual or ask the manufacturer rather than estimating from a product photo.

How to Choose the Right Pad Size and Shape

Pad size should suit the approved placement area and remain fully attached to clean, intact skin. Smaller pads may fit compact muscular areas, while larger pads can cover a broader area. A larger pad is not automatically stronger or more effective, and no pad should be trimmed unless its manufacturer explicitly permits cutting.

Small square or round pads: useful where there is limited flat skin surface.
Medium rectangular pads: common for general home use on larger muscular areas.
Larger pads: may suit broader areas when the device instructions allow them.

Keep every electrode separated and follow the placement rules for the body area. Read the TENS unit pad placement chart and safety guide before changing pad size or position.

When Should TENS Pads Be Replaced?

There is no universal number of uses because pad life changes with skin preparation, storage, climate, handling and the electrode material. Inspect each pad before every session and replace it when:

The gel is torn, cracked, permanently dry or missing.
The pad remains dirty after the permitted cleaning method.
An edge lifts from clean, dry skin or the full surface will not adhere.
Stimulation feels uneven, sharp, burning or unexpectedly uncomfortable.
The backing, pigtail, wire or connector is damaged.
Skin irritation continues after the session is stopped.

Turn the unit off before inspecting, reconnecting, moving or replacing any electrode. Never test a loose connection while stimulation is active.

How to Help Reusable Pads Last Longer

Wash and completely dry the intended skin area.
Avoid lotion, oil, cream and powder before applying the pads.
Handle each pad by its edge instead of touching the conductive gel.
Return pads to their original plastic liner immediately after use.
Seal the pads in their storage bag away from dust, heat and direct sunlight.
Use the cleaning method supplied by the electrode manufacturer.

Do not use alcohol, soap, household cleaner, glue, adhesive spray or oil on conductive gel unless the electrode manufacturer explicitly instructs it. See how to clean reusable TENS pads for a complete care checklist.

Basic Safety When Changing Electrodes

Switch the unit off and return intensity to zero before touching pads or leads.
Apply electrodes only to clean, dry, intact skin with normal sensation.
Do not place pads on the head, eyes, mouth, front or sides of the neck, broken or numb skin, or in a pattern that sends current across the chest.
Do not use TENS while sleeping, bathing, driving or operating machinery.
Stop if stimulation is painful or significant skin irritation develops.

Ask a healthcare professional before use if you are pregnant or have a pacemaker or another implanted electronic device, epilepsy, heart disease, cancer, circulation problems or reduced sensation. The NHS TENS overview also advises placing pads on clean skin near the painful area, keeping space between them and avoiding the front or sides of the neck.

KONGZEE Replacement TENS Pads

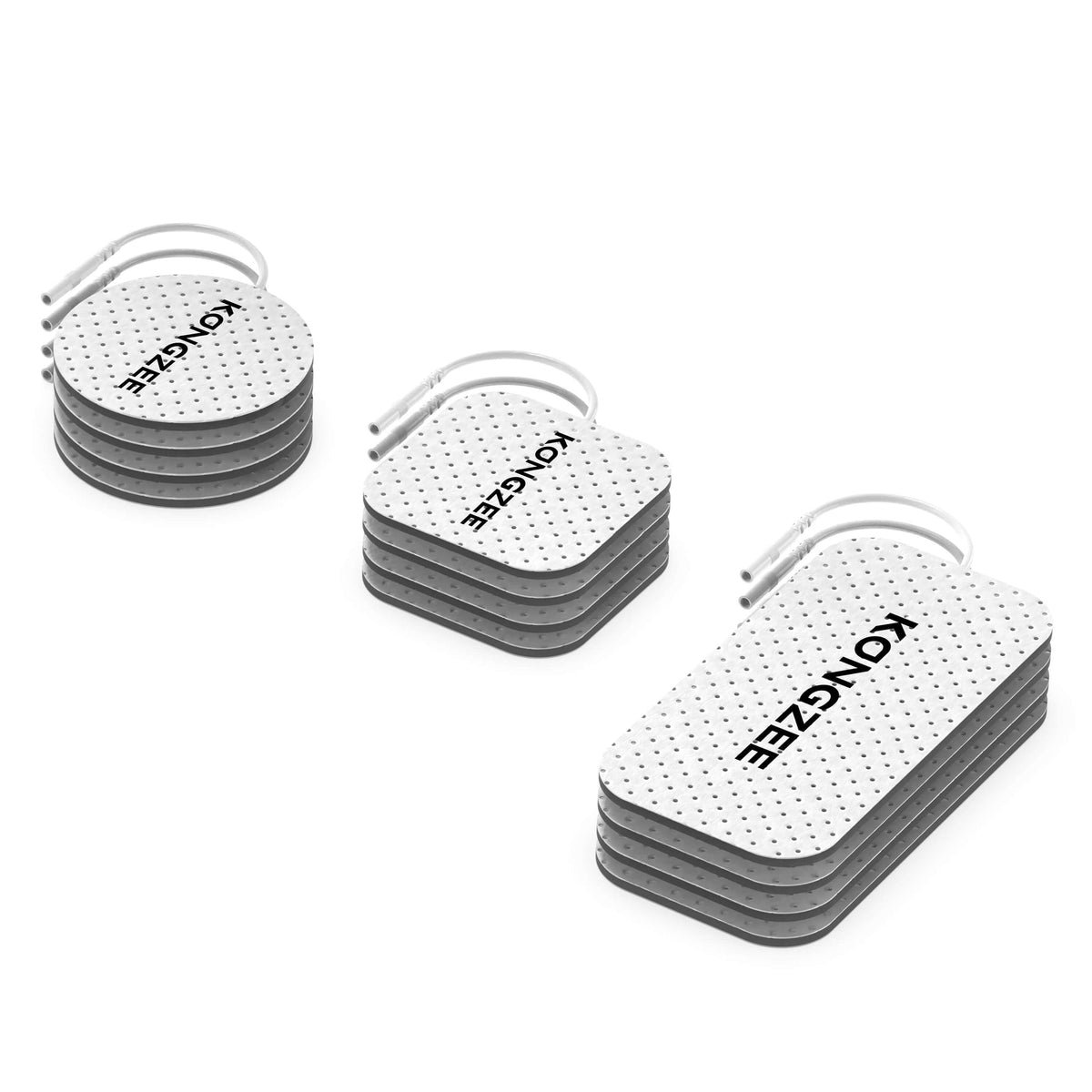

The KONGZEE 12-pack replacement TENS pads includes six reusable pairs in mixed sizes. They use a standard 2mm pin connector for compatible TENS and EMS devices. Confirm your connector before ordering. If the pad fits but the cable is damaged, compare both ends of the existing wire with the KONGZEE replacement lead wires.

For a complete controller, leads and pad set, see the KONGZEE portable rechargeable TENS and EMS unit.

Frequently Asked Questions

Are TENS pads universal?

No. Many pads use a common 2mm pin, but snap, proprietary and differently sized connections also exist. Confirm the connector and device instructions before buying.

Can I use EMS pads with a TENS unit?

Some electrodes are specified for both TENS and EMS devices, but the connector, electrical rating and manufacturer instructions must match the intended controller. A similar appearance is not enough.

How many times can reusable TENS pads be used?

There is no reliable universal number. Replace them based on adhesion, gel condition, cleanliness, comfort and the electrode instructions.

Can I cut a large TENS pad into a smaller shape?

Do not cut an electrode unless its manufacturer explicitly says it is designed to be cut. Cutting can damage the conductive layer and change current distribution.

Why does a worn pad feel sharp?

Dry gel, contamination, partial skin contact or a damaged lead can concentrate stimulation unevenly. Switch the unit off, inspect every component and replace the worn part before restarting at the lowest intensity.

Can different people share the same reusable pads?

No. Assign reusable adhesive electrodes to one person for hygiene and more consistent adhesion.

Related Guides

Reviewed September 16, 2026. This guide is educational and does not replace the instructions for your device or electrodes, or advice from a qualified healthcare professional.
